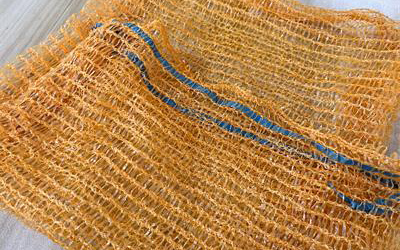

Fruit And Vegetable Bag Making Machine

warp knitting machine is an equipment used for weaving fruit bag and vegetable bag . This machine adopts advanced EL electronic traverse automation technology, which can quickly produce a large amount of fruit and vegetable bag . Compared with traditional hand weaving and netting machines, it can improve production efficiency and save labor costs.

Request a Quick Quote

Product Description

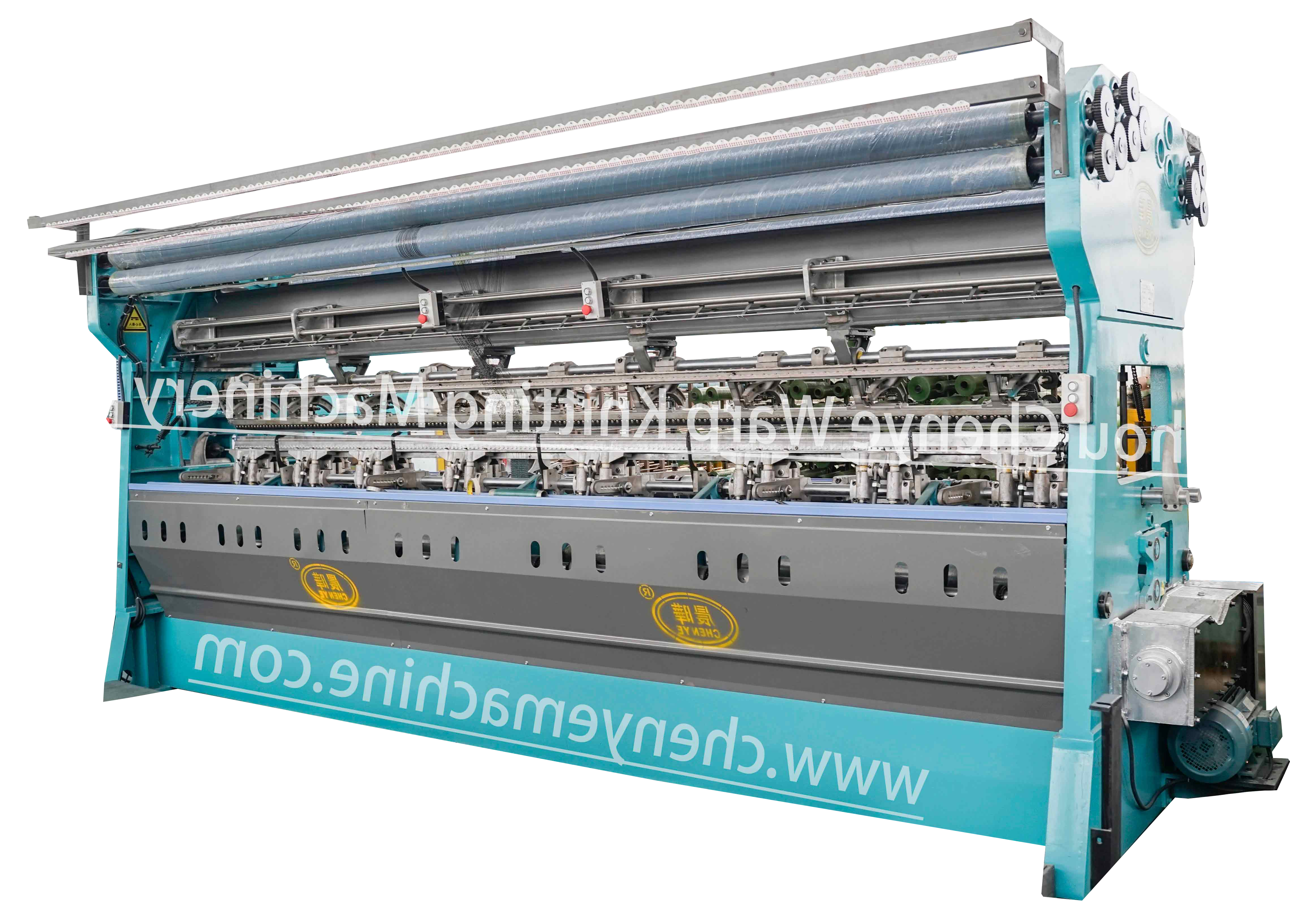

Fruit And Vegetable Mesh Bag Knitting Machine

Fruit And Vegetable Bag Warp Knitting Machine Features

● The machine is durable, with long service life and stable operation;
● Can produce bags and flat yarn mesh with high enough strength
● multiple 4-9;
● Simple operation and maintenance (daily maintenance, cleaning, simple needle replacement);
● EBA electronic warp let-off system, from mechanical to automatic, precisely controls the warp let-off amount, and the adjustment is more convenient.
Spindle speed measurement 400 rpm
decibel 80

Fruit And Vegetable Bag Warping Knitting Machine Specification

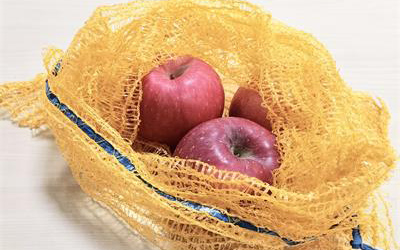

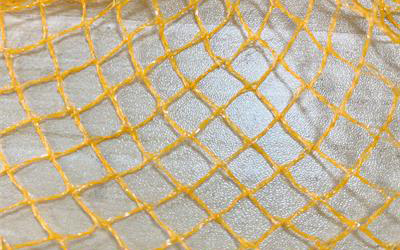

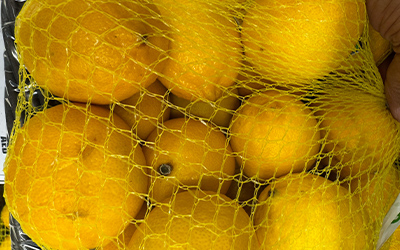

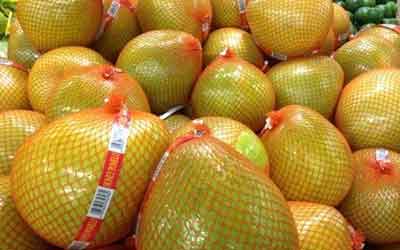

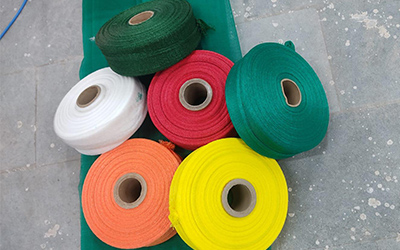

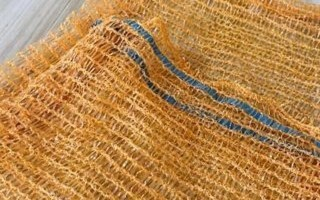

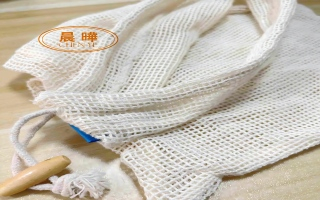

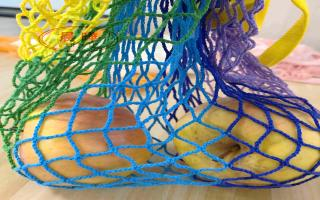

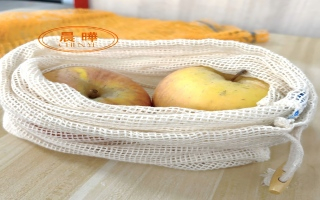

APPLICATION：This machine is used for the production of many kinds of vegetable bags, fruit mesh bags.
FEATURES: The machine is equipped with open cam gearing and 3-rollers positive yarn let-off system

THE MAIN TECHNICAL SPECIFICATION:
✮ Needle Type: Block latch needle or individual latch needle
✮Gauge: E2、E3、E6
✮Number of bars : 9
✮Working Width: 170“，260“ ，330“
✮Take-up Manner: Separately-standing take-up

PARAMETER

PARAMETER

Main Type	Machine Size	Machine Weight	Main Motor Power	Inching Motor Power	Speed(rpm)
DRCA-170	6000X6600X2500	about 9000	5.5	0.75	600
DRCA-260	8200×6600×2500	about 11000	7.5	1.5	600
DRCA-330	10000×6600×2500	about 14000	11	1.5	600

Why Choose Chenye

Chenye use 25mm steel plate,the frame thermal energy processing and multiple processing methods,it makes our machines much more stable.
Every detail is confirmed by the engineer countless times

Producing Flow

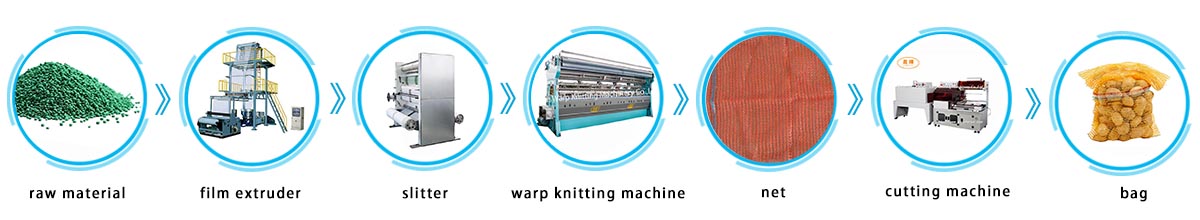

fruit net knitting machine producing line-1

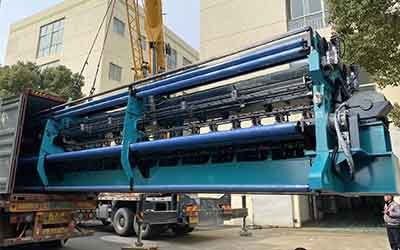

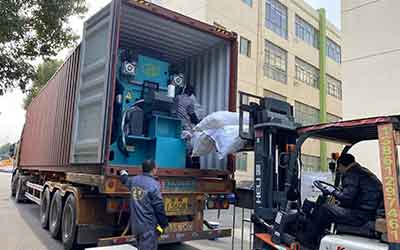

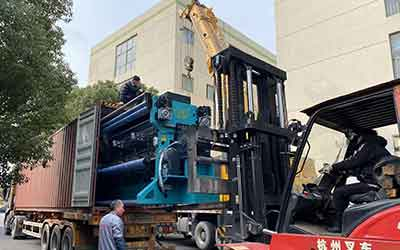

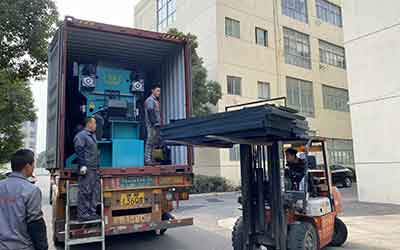

Warp Knitting Machine Packaging & Shipping

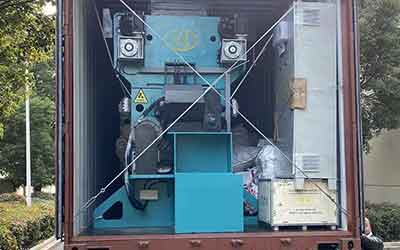

1. Usually 40HQ container is used for shipment, and the engineer plans the space inside the container reasonably.

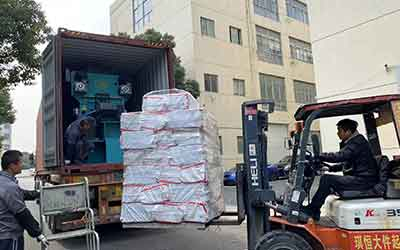

2. Additional accessories will be shipped in standard wooden boxes to ensure that the accessories are complete and in good condition

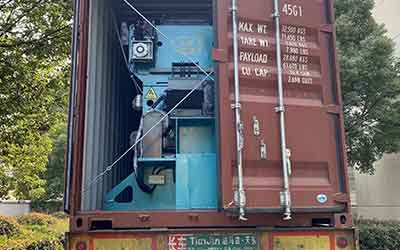

3. To ensure that the machine can arrive at your factory smoothly: fix the machine with a standard specification steel wire rope to ensure that the machine will not move; use plastic film to fully cover and spray anti-rust special paint to prevent machine parts from being damaged and corroded during shipment

Fruit And Vegetable Warp Knitting Machine FAQ

Q How to pay?

A 30% deposit, 70% before delivery
Q How do you make our business long-term and good relationship?

A
1. We keep good quality and competitive price to ensure our customers benefit;

2. We respect every customer as our friend, and we sincerely do business and make friends with them, no matter where they come from.
Q Can I visit your factory before ordering?

A
Sure, welcome to visit our factory

This is our factory address: Wujin Science and Technology Park, Changzhou, Jiangsu Province
Q If we buy this net machine. Can we get training?

A Of course, about 15 working days, you can operate the machine proficiently. Even better if you have journeymen
Q Can the net machine be disassembled for transportation?

A No, because the assembly process is complicated and the parts to be installed are heavy, so a crane is required for installation.
