Raschel Knitting Machine SROP

This machine is used to produce anti-drone nets, sports nets, drone protection nets, and so on.

Single-Needle-Bar-Raschel-Machine-SROP(1)
Raschel Knitting Machine SROP

Product Description

  • Product Feature


    Raschel Knitting Machine SROP Features


    ● The machine is durable, with a long service life and stable operation;
    ●This machine is used to produce knotless fishing net, sports net, purse net,anti-drone net, and aquaculture net.
    ● 2-8  bars;
    ●The machine is equipped with oiled eccentric gearing and the negative yarn let-off system.



    Why Choose Chenye

    We are stable

    why-choose-chenye

    Chenye uses a 25mm steel plate, thermal energy processing of the frame, and multiple processing methods; this makes our machines much more stable.

    Every detail is confirmed by the engineer countless times.
    Raschel Knitting Machine SROP Parts



    Producing Line

    If you have no experience, we are willing to help you and provide you with a whole course service.

    SPORT NET WHOLE LINE SAFETY NET WHOLE LINE PLASTIC NET WHOLE LINE
  • Product Specification


    Single Needle Bar Raschel Machine SROP



    APPLICATION: This machine is used to produce knotless fishing net, sports net, purse net,anti-drone net, and aquaculture net.



    FEATURES: The machine is equipped with oiled eccentric gearing and the negative yarn let-off system.



    THE MAIN TECHNICAL SPECIFICATION:

    ✮ Needle Type: Block latch needle or individual latch needle

    ✮ Gauge:E3、E6、E7、E8、E9、E12、E14、E16、E18;

    ✮ Number of bars: 2~8

    ✮ Working Width: 135“, 150“, 170“,  220“, 240“, 260”

    ✮ Take-up Manner:2 rollers with friction drive, center shaft drive, 2 rollers with friction drive, separately-standing, center shaft drive, separately-standing

    Main type Machine size Machine weight Main motor power  Inching motor power speed  d(rpm)
    SROP-135 4300X2200X2700 ~4700 3 0.37 200-480
    SROP-150 4900×2200×2700 ~5000 3 0.37 200-480
    SROP-170 5800×2400×2800 ~7500 5.5 0.75 200-420
    SROP-220 7300×2400×2800 ~9000 5.5 1.5 200-420
    SROP-240 7600×2400×2800 ~10500 5.5 1.5 200-380
    SROP-260 8100×2400×2800 ~12000 7.5 1.5 200-380


  • Product Application

    Raschel Knitting Machine SROP Application

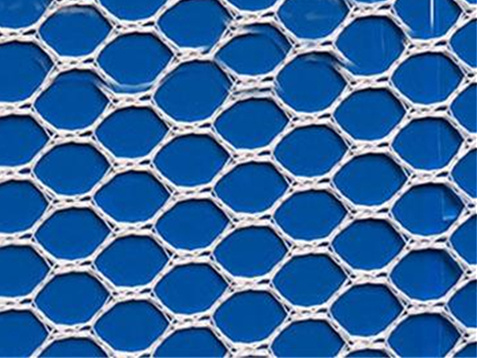

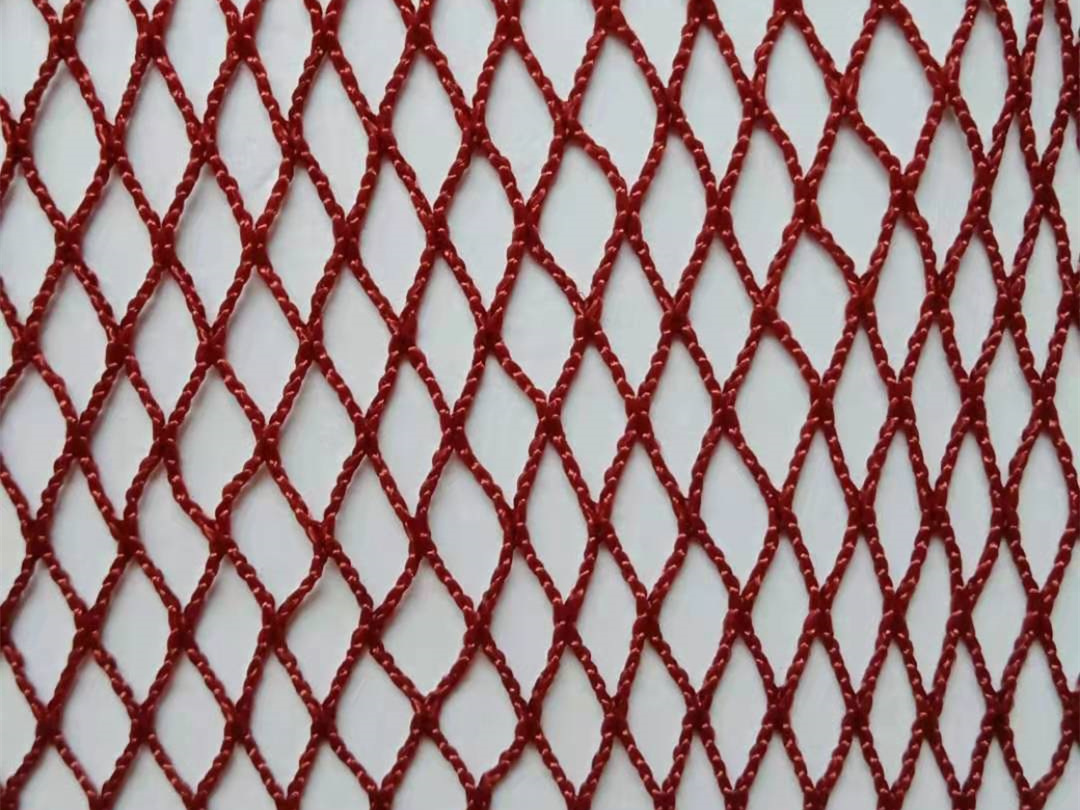

    This machine is used to produce knotless fishing nets, sports nets, purse nets, anti-drone nets, and aquaculture nets.
  • PDF Download

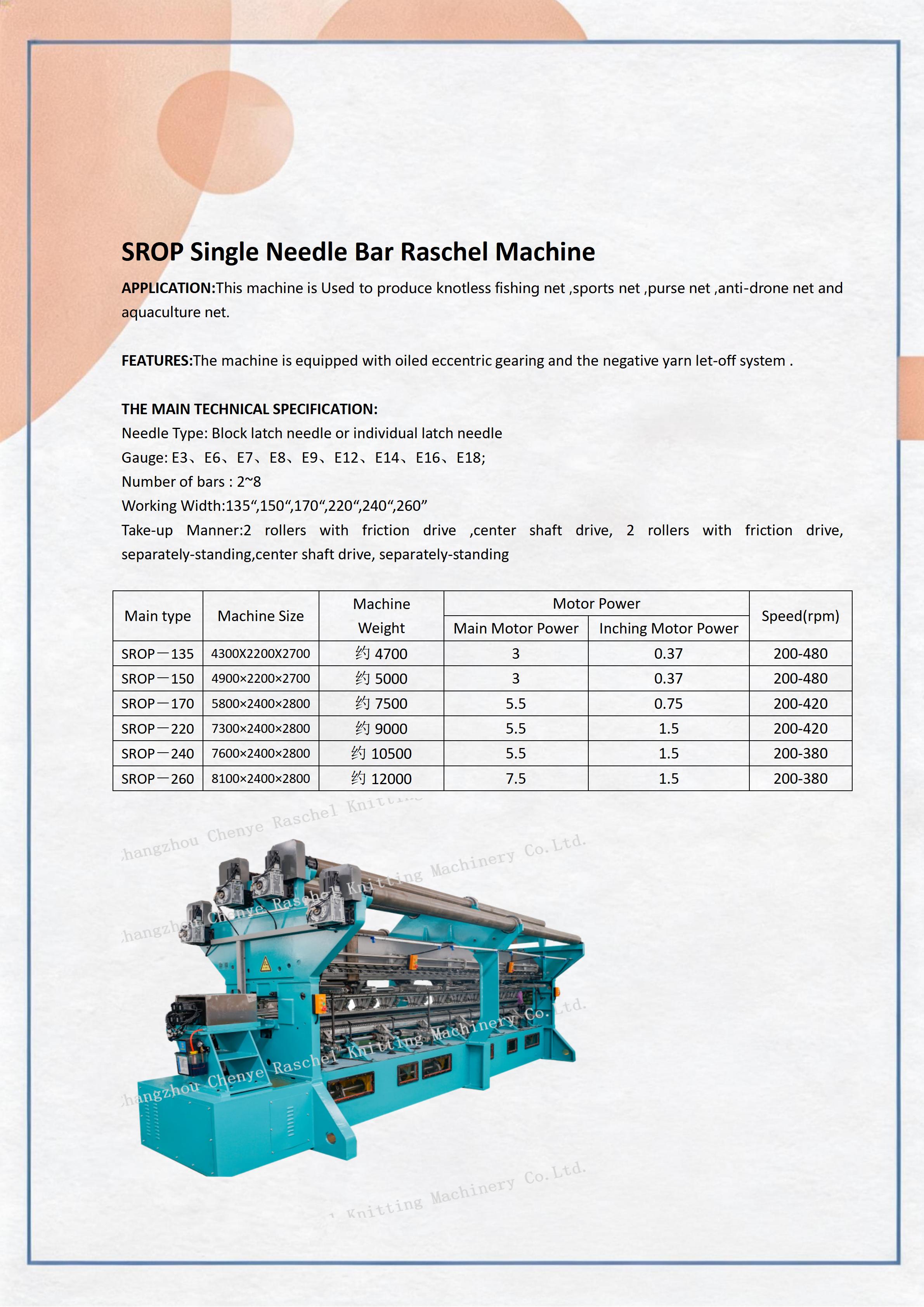

    Raschel Knitting Machine SROP Catalogue


    SROP
Raschel Knitting Machine SROP Manufacturing

Raschel Knitting Machine SROP Working Video

Machine Shipment

Raschel Knitting Machine  SROP Packaging & Shipping

1. Usually, a 40HQ container is used for shipment, and the engineer plans the space inside the container reasonably.
2. Additional accessories will be shipped in standard wooden boxes to ensure that the accessories are complete and in good condition
3. To ensure that the machine can arrive at your factory smoothly: fix the machine with a standard-specification steel wire rope to ensure that the machine will not move; use plastic film to fully cover and spray anti-rust special paint to prevent machine parts from being damaged and corroded during shipment

Frequently Asked Question

Raschel Knitting Machine SROP FAQ
