Raschel Knitting Machine RS

This machine is used to weave knotless shading net ,bale net ,unti-hail net, purse net and breeding net etc.

RS-Raschel-Knitting-Machine
Raschel Knitting Machine RS

Product Description

  • Product Feature


    Raschel Knitting Machine RS Features


    ● Strong, deformation-resistant welded steel construction
    ● Ensure the quality of each component, and make every detail almost perfect
    ● Machines for different applicants
    ● Suitable for round and flat yarns
    ● Low investment, high return.
    ● If you are a novice, we will provide a suitable complete process according to your needs


    Why Choose Chenye

    we are stable

    why-choose-chenye

    Chenye use 25mm steel plate,the frame thermal energy processing and multiple processing methods,it makes our machineS much more stable.

    Every detail is confirmed by the engineer countless times

    Every detail is confirmed by the engineer countless times

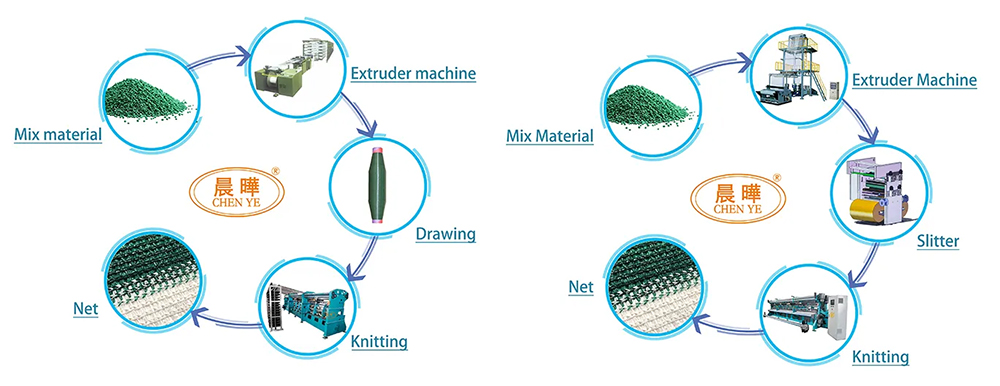

    Producing Line

    lf you have no experience, we are willing to help you and provide you with whole course service.

    production-line
  • Product Specification


    Single Needle Bar Raschel Machine RS


    Application:  This machine is used to weave knotless shading net ,bale net ,unti-hail net, purse net and breeding net etc.
    Material:  HDPE,PP falt or mono yarn.
    Features: The machine is equipped with oiled cam mechanism and 3-rollers positive yarn let-off system with EBA.


    The Main Technical Specification:


    ✮ Needle Type:  compound needle
    ✮ Gauge:  E3、E6、E7、E8、E9
    ✮ Number of bars :  2~3
    ✮ Working Width:  130“，180“，220“，240“，260”
    ✮ Take-up Manner:
    Two-roll friction batching device
    Two-roll friction individual batching device


       Main type

    Machine size

    Machine weight

    Main motor power

    Inching motor power

    speed(rpm)

       RS－130

    5000X2200X25000

    ~5000 KG

    4 KW

    0.37 KW

    200-650

       RS-180

    6000×2200×2500

    ~7000 KG

    5.5 KW

    0.75 KW

    200-650

       RS-220

    7000×2400×2500

    ~8000 KG

    5.5 KW

    0.75 KW

    200-650

       RS-240

    7500×2400×2500

    ~9000 KG

    7.5 KW

    0.75 KW

    200-600

       RS-260

    8000×2400×2500

    ~10000 KG

    7.5 KW

    0.75 KW

    200-600

    RS-Raschel-Knitting-Machine-Specification
  • Product Application

    Raschel Knitting Machine RS Application

    Nets for agricultural, construction and sports use, such as shade net, green house net, anti-birds & wind protection net, building safety nets, scafold net, industrial net, football gate net & packing nets (for potato, onion, fruit) etc.

    RS-Raschel-Knitting-Machine-Application  RS-Raschel-Knitting-Machine-Application2

  • PDF Download


    Raschel Knitting Machine RS Catalogue



    RS-Raschel-Knitting-Machine-Catalogue

Raschel Knitting Machine RS Manufacturing

Raschel Knitting Machine RS Working Video

Machine Shippment

Raschel Knitting Machine  RS Packaging & Shipping

1. Usually 40HQ container is used for shipment, and the engineer plans the space inside the container reasonably.
2. Additional accessories will be shipped in standard wooden boxes to ensure that the accessories are complete and in good condition
3. To ensure that the machine can arrive at your factory smoothly: fix the machine with a standard specification steel wire rope to ensure that the machine will not move; use plastic film to fully cover and spray anti-rust special paint to prevent machine parts from being damaged and corroded during shipment

Frequently Asked Question

Raschel Knitting Machine RS FAQ

Consult Your Chenye Experts

We assist you in circumventing any obstacles to deliver the necessary quality and value that your Raschel Warp knitting machine requires, within the designated timeline and budget.
