Views: 0 Author: Site Editor Publish Time: 2026-08-13 Origin: Site
Nowadays, the role of anti-drone netting is becoming increasingly prominent, evolving into a security requirement of growing importance.
The manufacturer must first understand what needs to be protected, what type of drone may approach the site, how the net will be installed, and what environmental conditions it must withstand. Only then can the yarn, mesh structure, and production equipment be selected.
Raschel warp knitting technology provides an efficient way to manufacture large, knotless synthetic net panels. However, producing a reliable anti-drone protective net requires more than simply changing the mesh size of an existing agricultural product. It requires coordinated control of yarn preparation, edge construction, take-up, finishing, and testing.
The production project should begin with a clear application profile.

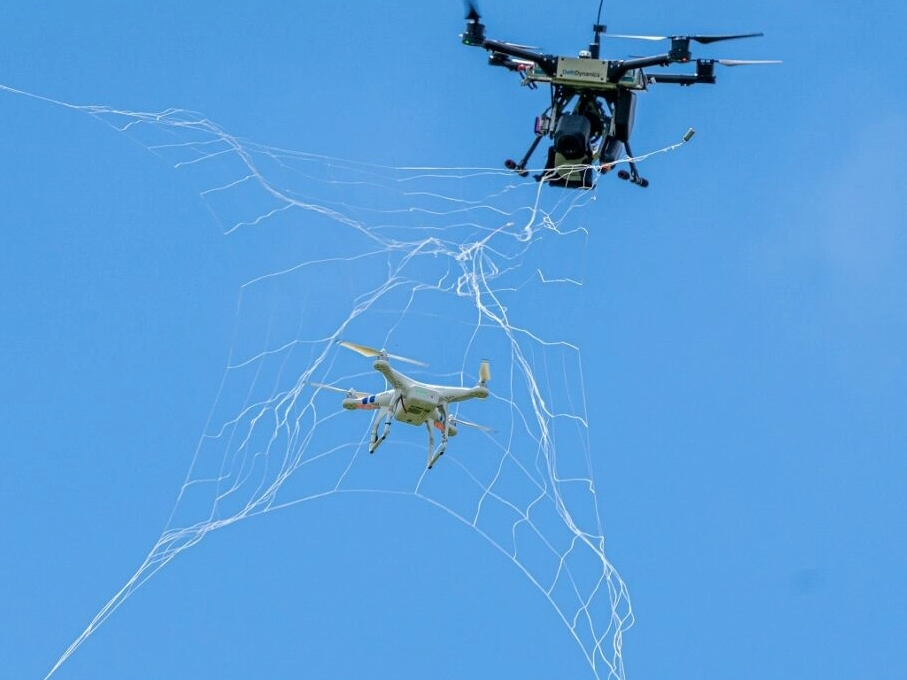

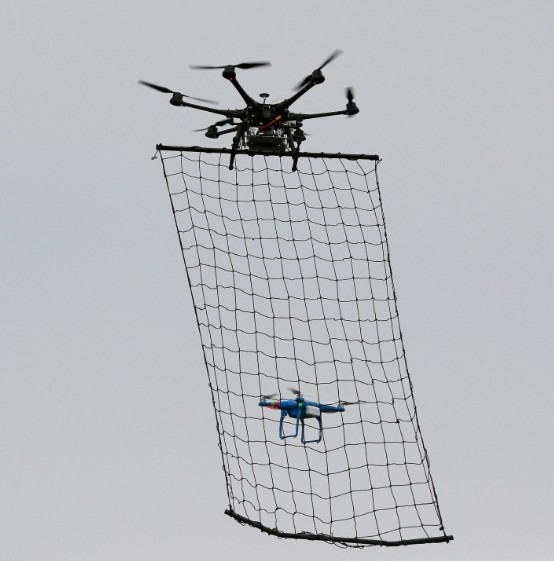

The materials used for anti-drone nets vary depending on the application scenario and can differ significantly. A lightweight capture net launched from an interceptor drone is also fundamentally different from a permanent industrial barrier.
The first thing to consider is the protected area and installation dimensions; Fixed, modular, or deployable installation; Target mesh opening; Required service life; Expected wind, rain, snow, and UV exposure; Weight restrictions; Edge and panel connection method; Applicable safety and testing standards.
Only by considering these factors can one determine which type of anti-drone net is the most suitable.
The yarn determines much of the net’s weight, strength, elongation, and weather resistance. Different materials have different uses and characteristics.
UV-stabilized HDPE is economical, lightweight, and widely used in outdoor net products. It can be suitable for large fixed barriers where cost, corrosion resistance, and production efficiency are important.
High-tenacity polyester offers good dimensional stability and weather resistance. It may be considered for structures that require controlled elongation and long-term tension.
Polyamide can provide useful elasticity and impact absorption. Moisture behavior and outdoor aging must be considered during product design.
UHMWPE offers a high strength-to-weight ratio and can support lightweight net concepts. Its cost, knitting behavior, and joining method require careful evaluation.
The inherent properties of the material do not tell the whole story; the manufacturing techniques and processes involved are also crucial.
Stable yarn feeding is essential for consistent mesh formation.
Depending on the material and net structure, production may use a creel, warp beams, or a combination of feeding systems. The yarn path must maintain controlled tension without damaging the filament.
Electronic yarn let-off can help maintain consistent feeding as roll diameter and machine speed change. This is a key factor ensuring that the woven anti-drone net is strong, tight, and of high quality.
The Raschel machine forms the yarn into a continuous mesh through synchronized needle, guide-bar, and take-up movements.
Important machine parameters include: Needle type and gauge, number of guide bars, working width, yarn feeding arrangement, mesh repeat, machine speed, fabric take-up tension, edge construction, roll winding method.
A single-needle-bar Raschel machine may be suitable for many lightweight and medium-weight knotless protective nets. Other structures may require a different guide-bar arrangement or specialized machine configuration.
The objective is not simply to knit faster. The machine must maintain uniform openings, stable edges, and consistent yarn distribution across the full working width.
After knitting, the net may require heat setting, dimensional stabilization, trimming, panel cutting, or controlled winding.
Quality inspection should evaluate: Mesh size consistency, net width and length、Yarn damage、Missing stitches、Edge strength、Seam quality、Roll tension、Weight per square meter, tensile and tear performance, UV-aging behavior, connection-point performance.
A roll that looks visually acceptable may still fail if tension varies across its width or if the attachment system concentrates loads at a small number of points.
A suitable production system should provide: Stable processing of the selected yarn, Accurate and repeatable mesh geometry, Consistent tension across wide fabrics, Flexible guide-bar pattern control, Reliable reinforced-edge production, Controlled take-up and winding, Convenient adjustment for different product specifications, Efficient maintenance and spare-parts availability.
For an emerging product category, flexibility is especially valuable. Manufacturers may need to produce several mesh sizes and panel formats before market demand becomes standardized.
Changzhou Chenye Warp Knitting Machinery Co., Ltd. has focused on Raschel warp knitting machinery and net production solutions since 2000.
Its equipment portfolio covers single-needle-bar and double-needle-bar Raschel machines, yarn preparation equipment, slitting and extension systems, warping equipment, and supporting production-line machinery.
For a specialized protective net project, Chenye can begin with the customer’s net sample, yarn specification, and target production requirements. The technical team can then evaluate the mesh structure, yarn feeding method, machine width, guide-bar arrangement, and take-up system.
The service process may include: Net sample and yarn analysis, Preliminary machine configuration, Production-flow design, Workshop layout assistance, machine trial and acceptance testing, installation and commissioning, operator training, remote technical support, long-term spare-parts service.
Q: Can one Raschel machine produce different anti-drone net specifications?
A: A properly configured machine may produce multiple mesh structures, but the available range depends on the yarn, gauge, guide bars, working width, and take-up system.
Q: Is HDPE suitable for anti-drone protective nets?
A: UV-stabilized HDPE may be suitable for selected fixed barriers. Its suitability must be confirmed through yarn, net, and installed-system testing.
Q: Can an existing shade-net factory produce anti-drone nets?
A: Some existing production assets may be adaptable, but protective nets generally require different yarns, mesh structures, edge reinforcement, and quality testing.
Q: What information is needed before selecting a machine?
A: The manufacturer should provide the yarn specification, target mesh size, net width, panel dimensions, weight target, edge structure, installation method, and expected production volume.
Q: Does Chenye provide a complete production line?
A: Chenye can evaluate requirements for yarn preparation, Raschel knitting, take-up, and supporting equipment. The final line configuration is developed according to the customer’s product and raw material.
Send your yarn details, target mesh structure, or reference sample to Changzhou Chenye Warp Knitting Machinery Co., Ltd. for a preliminary anti-drone protective net production proposal.
