The demand for high-strength safety nets is continuously increasing in industries such as construction, sports, transportation, agriculture, and industrial protection. For manufacturers who want to produce reliable safety nets, choosing the right Safety Net Machine is one of the most important decisions.
A professional warp knitting machine for safety net production directly affects production efficiency, net quality, machine durability, and long-term business profitability.
As an experienced Raschel warp knitting machine manufacturer, Changzhou Chenye provides advanced double needle bar Raschel machines designed for producing safety nets, protective nets, sports nets, and packaging nets.
This guide will help you understand how to select the right safety net making machine for your factory.
A Safety Net Machine is a specialized warp knitting machine designed to manufacture different types of protective nets using synthetic yarn materials such as polyethylene (PE), polypropylene (PP), and nylon.
Unlike traditional weaving equipment, a Raschel warp knitting machine creates stable mesh structures with excellent strength, flexibility, and durability.

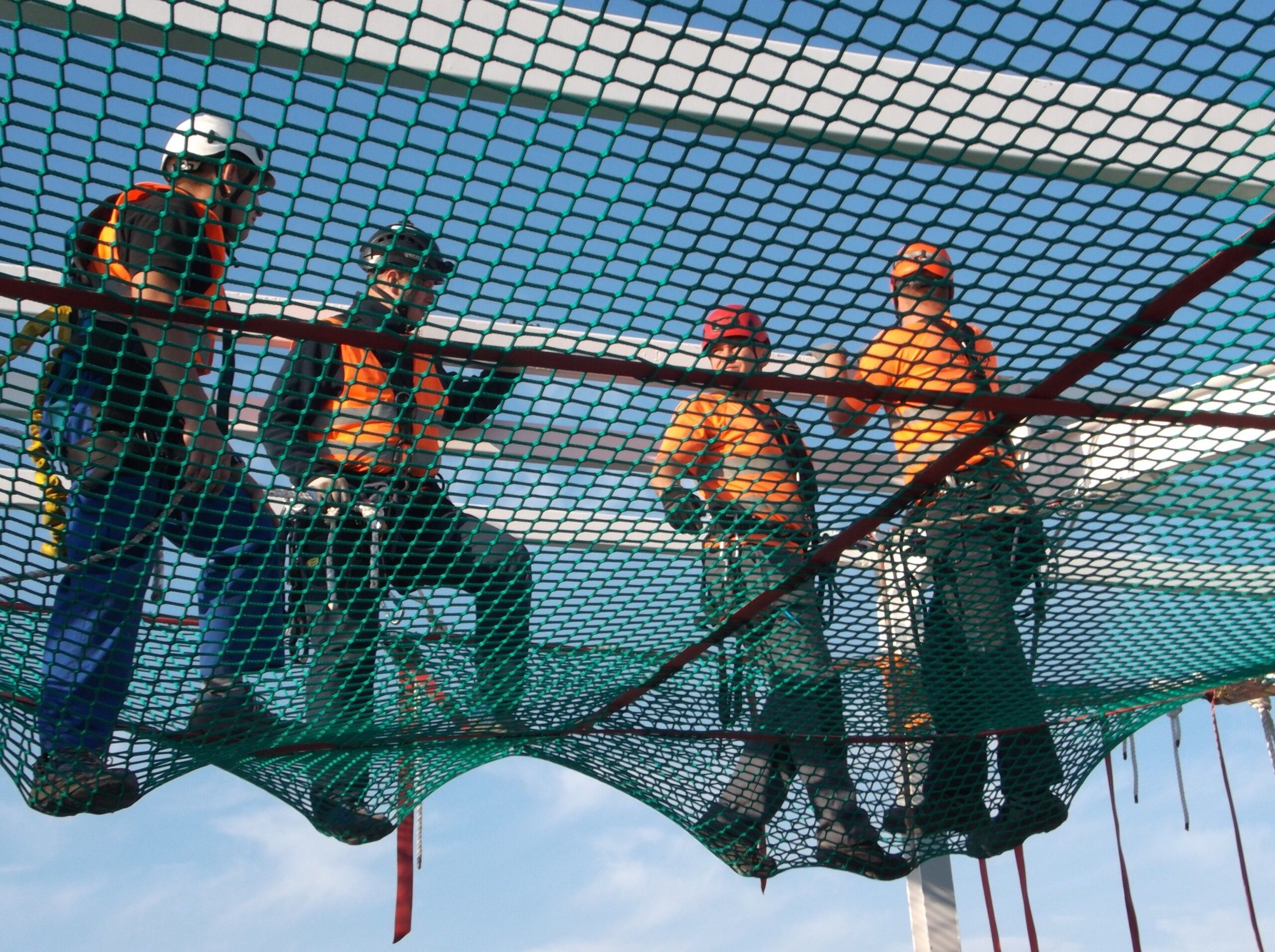

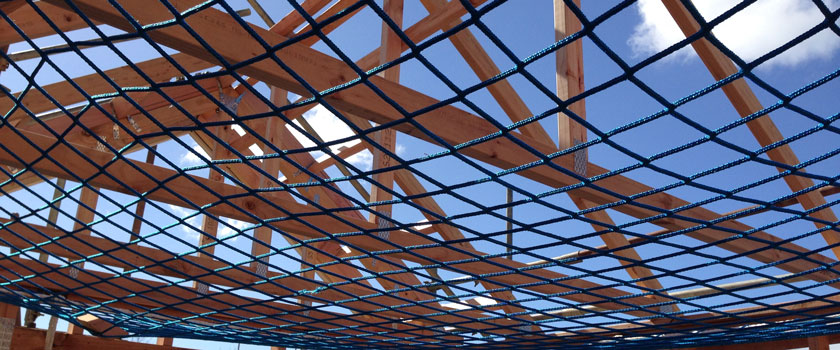

A modern safety net manufacturing machine can produce construction safety nets, fall protection nets, sports nets, industrial protective nets, packaging nets, and agricultural nets.
For factories producing large quantities of safety nets, selecting a reliable warp knitting machine is essential for maintaining consistent quality and reducing production costs.
The Raschel warp knitting machine is widely used in safety net manufacturing because of its strong performance and flexible production capability.
The main advantages include:
Safety nets require excellent tensile strength and impact resistance. The Raschel knitting process creates stable mesh structures that provide reliable protection in demanding applications.
By adjusting machine settings, manufacturers can produce different mesh sizes and structures according to customer requirements.
A professional safety net production machine helps factories achieve continuous production with stable output and lower labor requirements.
Industrial Raschel machines are designed for continuous operation with strong mechanical structures, ensuring reliable performance for years.
One of the popular solutions for safety net production is the Double Needle Bar Raschel Machine DRCP.
This machine is specially designed for producing safety nets, sports nets, packaging nets, and protective nets.
The machine is equipped with an open cam gearing system, which provides stable operation and reliable mechanical performance.
The negative yarn let-off system ensures smooth yarn feeding and helps maintain consistent mesh quality during production.
The machine supports block latch needles and individual latch needles. So it provides flexibility for different production requirements.
When purchasing a safety net making machine, manufacturers should carefully check the technical specifications.
Item | Specification |
Needle Type | Block latch needle or individual latch needle |
Gauge | E4, E6, E9 |
Number of Bars | 8 |
Working Width | 130", 190", 220" |
Take-up System | Separately-standing take-up |
Related Equipment | Warping Machine |
Machine Type | Machine Size | Machine Weight | Main Motor Power | Inching Motor Power | Speed |
DRCA-170 | 6000 × 6600 × 2500 mm | Approx. 12000 kg | 5.5 kW | 0.75 kW | 400 rpm |
DRCA-260 | 8200 × 6600 × 2500 mm | Approx. 30000 kg | 7.5 kW | 1.5 kW | 300 rpm |
These specifications allow manufacturers to select the suitable machine according to production capacity and factory requirements.
At the same time, you can customize the details according to your needs.
A high-quality safety net machine can process different synthetic yarn materials, including:
Polyethylene (PE)
Polypropylene (PP)
Nylon Yarn
Choosing the correct yarn material together with the right warp knitting machine ensures better final product performance.
A complete safety net production line usually includes several steps:
Step 1: Raw Material Preparation
Plastic raw materials or yarn are prepared according to production requirements.
Step 2: Yarn Processing
The yarn is processed through extrusion or yarn preparation equipment.
Step 3: Warping Process
The warping machine prepares yarn beams for stable feeding into the warp knitting machine.
Step 4: Warp Knitting Process
The safety net machine knits the yarn into finished mesh structures.
Step 5: Finished Safety Net
The final products can be used for construction protection, sports facilities, industrial applications, and other fields.
A complete production solution may include: extruder, warping machine, yarn beam, warp knitting machine, finished net processing equipment.
Before investing in a safety net manufacturing machine, consider the following factors:
Different applications require different mesh structures. For example: construction safety nets require high strength and durability, sports nets require specific mesh sizes and flexibility, and packaging nets require lightweight structures. Choose a machine according to your target market.
The working width determines the maximum net width that can be produced. Common options include:130 inches, 190 inches, 220 inches. A wider machine can improve production efficiency for large-size nets.
Changzhou Chenye specializes in manufacturing Raschel warp knitting machines for different net production industries.
Our machines are designed for manufacturers who need:
✓ Stable industrial performance
✓ High-quality mesh production
✓ Flexible application solutions
✓ Professional technical support
✓ Long-term machine reliability
Our Safety Net Machine solutions are suitable for customers producing:
Construction safety nets
Fall protection nets
Sports nets
Protective nets
Packaging nets
With professional manufacturing experience, we help global customers build efficient and reliable net production lines.
A Raschel warp knitting machine is commonly used for producing safety nets because it can create strong and stable mesh structures.
Safety net machines can process PE, PP, nylon, and other synthetic yarn materials.
Yes. By adjusting machine parameters, the same warp knitting machine can produce different safety nets, sports nets, and protective nets.
Choose a supplier with: manufacturing experience, technical expertise, complete machine specifications, and reliable after-sales support.
